Line-Lock Control

CORE ECU features a dedicated Line-Lock control system that independently engages the front brakes via an electronic solenoid valve, allowing the rear wheels to spin freely. This enables controlled burnouts and consistent drag racing launches. The system maintains hydraulic pressure in the front brake calipers through a user-configured activation mode, keeping the vehicle stationary while the rear wheels rotate. Line-Lock can also function as an anti-roll device during the launch control sequence, minimizing vehicle movement during trans-brake activation. The following steps outline the process for configuring and enabling Line-Lock Control.

Line-Lock Control VCM Live Setup

  1. Download the latest version of VCM Live Beta here.

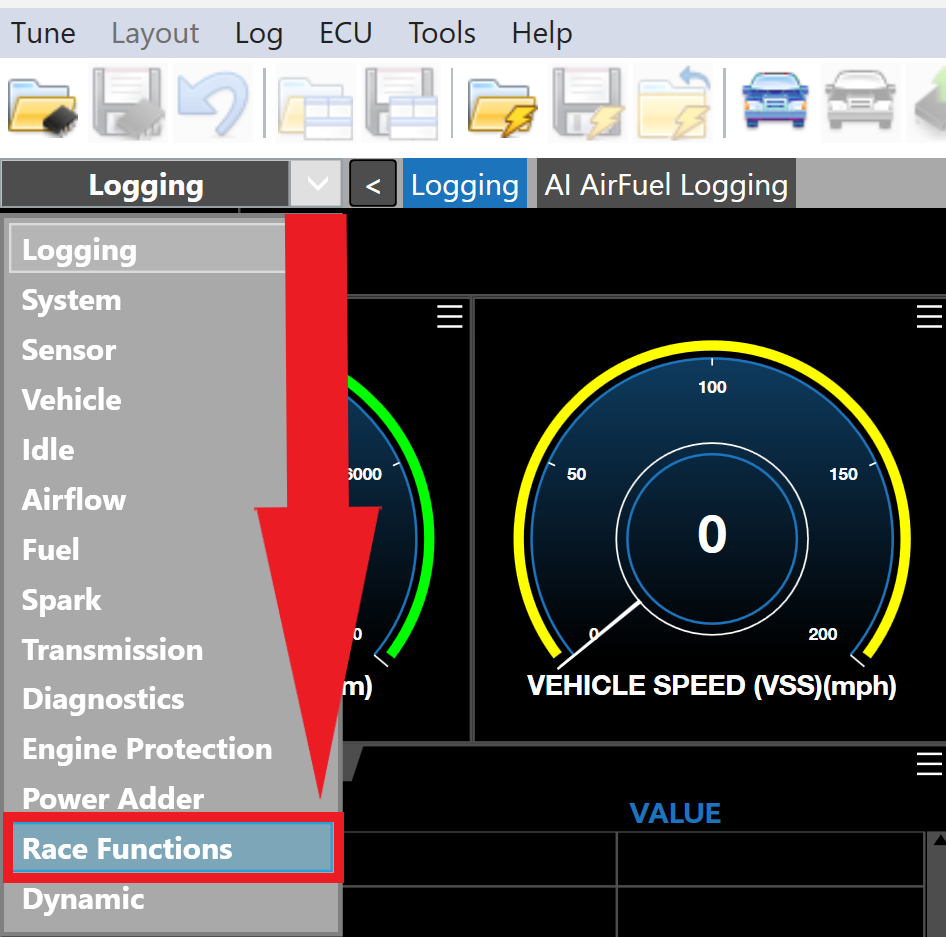

  2. Open VCM Live and click the drop down arrow in the group layout tab and select Race Functions.

  3. Click the Race Functions Config tab.

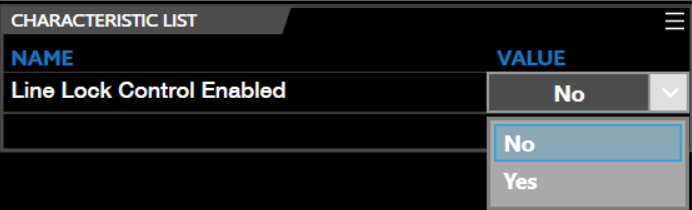

  4. Locate the Line Lock Control Enabled parameter and change the value to Yes.

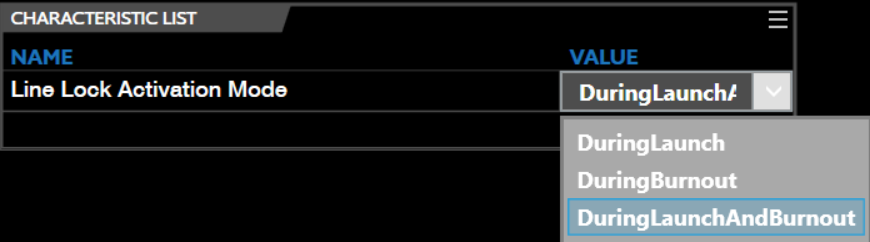

  5. Select the Line Lock tab in the top menu bar and locate the Line Lock Activation Mode parameter and select your preferred activation mode.

    CORE enables you to select when the line-lock solenoid is engaged:

    • DuringLaunch: During the vehicle launch sequence.
    • DuringBurnout: During the burnout sequence.
    • DuringLaunchAndBurnout: During both launch and burnout sequences.

  6. Line-Lock control is now enabled. Use the section below to complete your configuration.

Line-Lock Control Tuning Setup

Note

Your professional tuner is your first line of support for tuning questions. We strongly recommend having all vehicle calibrations performed by a professional tuner.

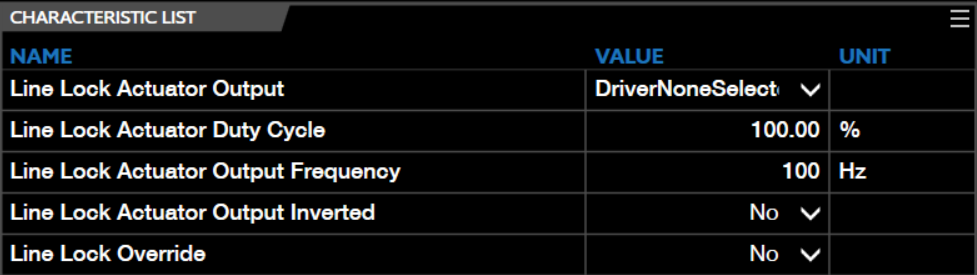

  1. Locate the parameters below to configure the line-lock solenoid output channel, duty cycle, and frequency.
