ProLink Wiring🔗

The Pro Feature Set and Pro Link give you the ability to log analog and CAN based signals through your MPVI interface. The two scenarios you will encounter when using your Pro Link will be measuring voltage and receiving CAN messages.

When to Use This Guide🔗

Utilize this guide when trying to connect your ProLink cable.

Requirements🔗

Step-by-Step Instructions🔗

Step 1. Connect your wideband, MAP, and/or boost pressure sensor using the below table.

Wire Color Function
Black GND
Red Analog 1
Blue Analog 2
Orange CAN High
Yellow CAN Low

Step 2. Connect the opposite end of the ProLink cable to your MPVI device.

Tip

  • Measures 0-5v
  • Measure two separate voltages
  • 100 hz sampling rate
  • CAN input 500 kbps support only

Step 3. Connect your MPVI device to your vehicle's OBDII port.

Note

  • Most OBDII ports are located below the driver side dashboard.

Step 4. Connect your laptop to your MPVI device.

Step 5. Open VCM Scanner.

Note

  • Ensure you are running the latest VCM Scanner.

Step 6. Setup your channels list.

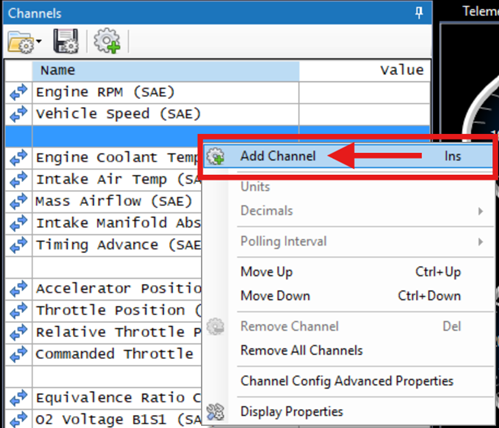

A. Right click anywhere in the channels list and select "Add Channel" (see image below).

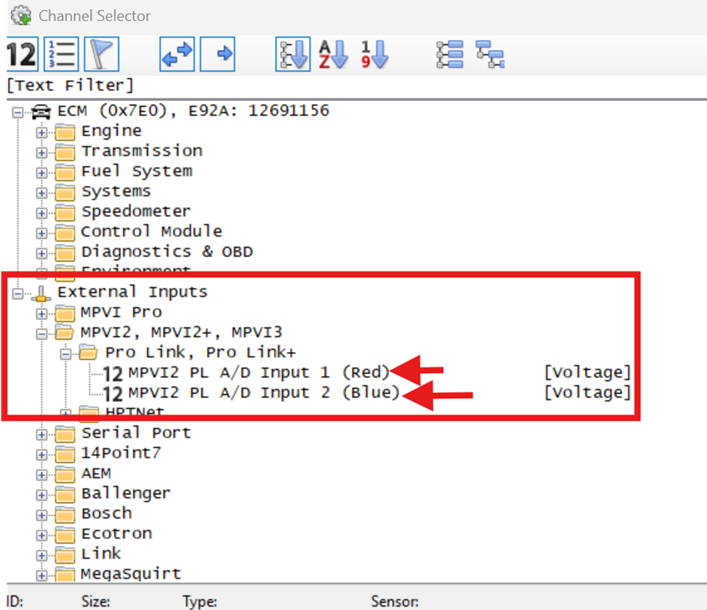

B. A Channel Selector window will appear. Within "External Inputs" select the corresponding MPVI folder. Within the MPVI sub folder select "Pro Link" and double click the corresponding analog input you are using for the ProLink (see image below).

Step 7. Transform your Signal.

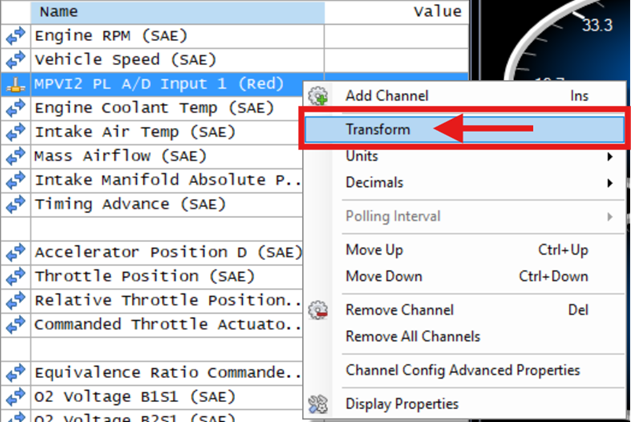

A. Right click your new channel you just added to the channels list and select "Transform" (see image below).

B. A transform selector window will appear; locate the wideband sensor you are using.

C. Click the sensor you are using once and select the fx icon.

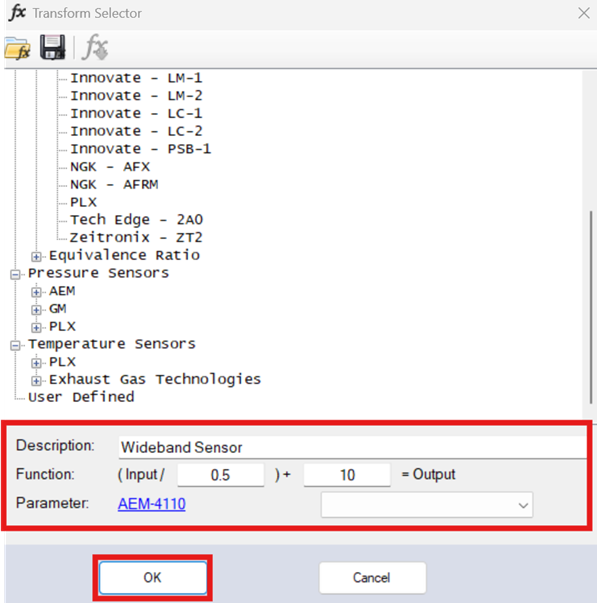

D. Enter your wideband's specification instructions within the below window and select "OK".

Step 8. You can begin scanning and using your ProLink and MPVI device.

Still Need Help?🔗

If issues persist, please contact our support team through the Help Portal.
