Supported Controllers & Models🔗
The four available OBDII Adapter Cables are listed below with their supported controllers and models:
| Item | OBDII Adapter Cable |
Description (Models format: year / model / displacement / part number) |
|---|---|---|

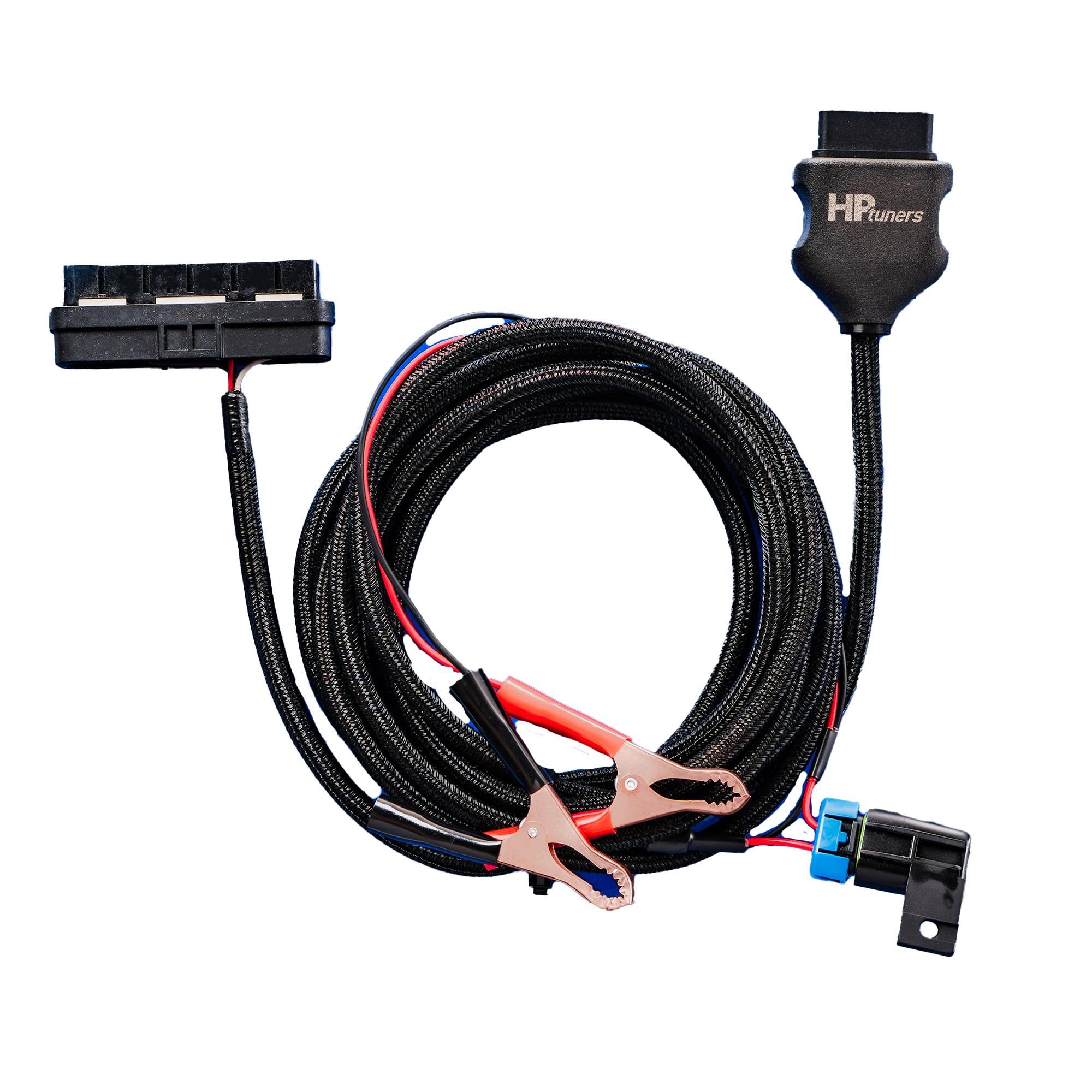

| 1 | OBDII Adapter Cable - Yamaha Outboard (34 Pin ECU, Style 1) |
The Yamaha models and controllers this adpater can connect to can be found below: MODELS: - 2017-2024 / F150 / 2.8L / 6HP - 2022-2025 / F200 / 2.8L / 6LH - 2010-2021 / F225 / 4.2L / 6CL - 2008-2010 / F250 / 3.3L / 6BR - 2009-2021 / F250 / 4.2L / 6CB - 2010-2021 / F250 / 4.2L / 6CG - 2010-2021 / F300 / 4.2L / 6CE - 2007-2009 / F300 / 4.2L / 6BJ - 2020-2024 / F300 / 4.2L / 6KA - 2007-2019 / F350 / 5.3L / 6AW CONTROLLER: - Yamaha Mitsubishi 1024K Marine |

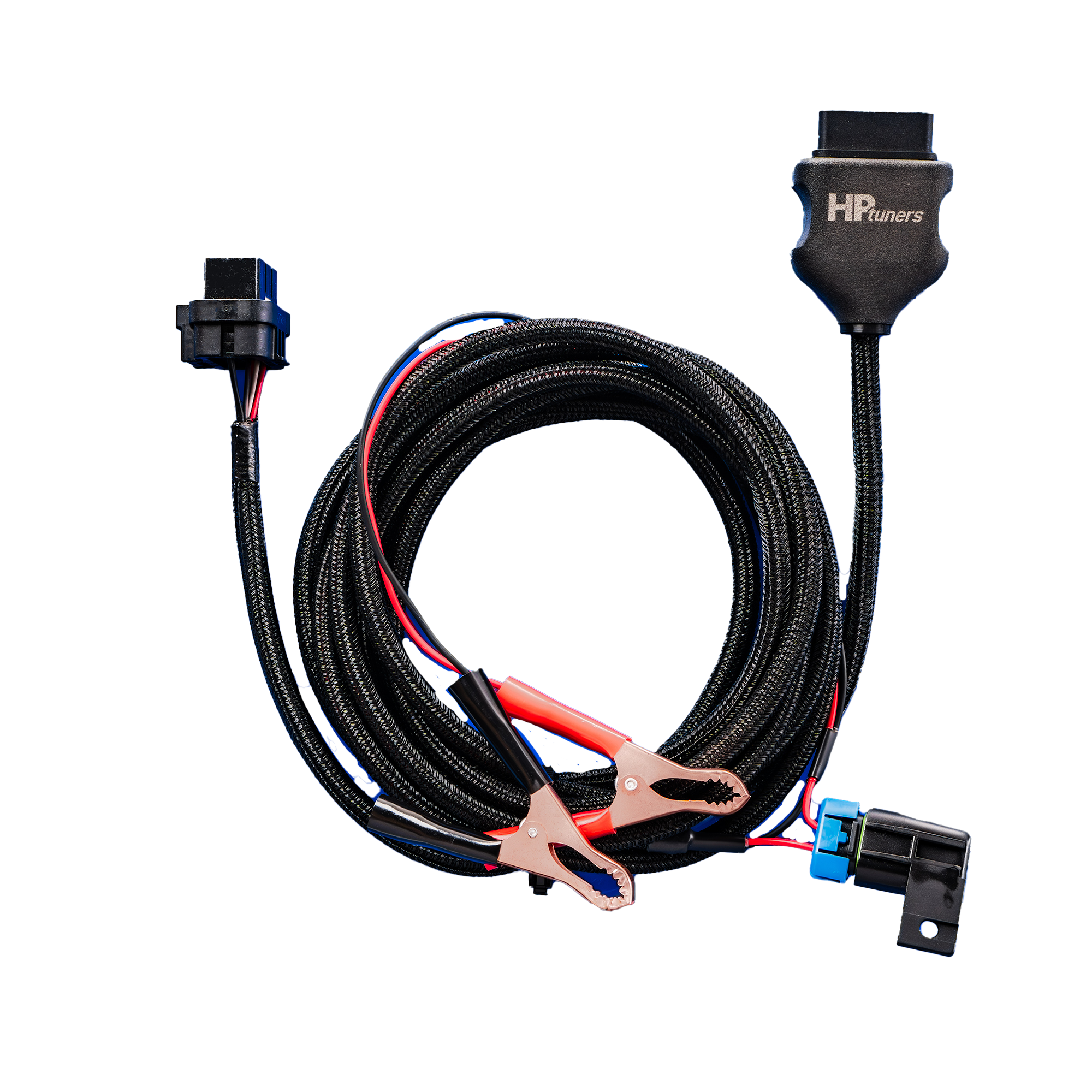

| 2 | OBDII Adapter Cable - Yamaha Outboard (34 Pin ECU, Style 2) |
The Yamaha models and controllers this adpater can connect to can be found below: MODELS: - 2005-2025 / F50 / 1.0L / 6C1 - 2005-2024 / F60 / 1.0L / 6C5 - 2010-2024 / F70 / 1.0L / 6CJ - 2005-2017 / F75 / 1.6L / 6D6 - 2005-2017 / F90 / 1.6L / 6D8 - 2011-2014 / F115 / 1.8L / 68V - 2014-2025 / F115 / 1.8L / 6EK CONTROLLER: - Yamaha Mitsubishi 512K Marine |
| 3 | OBDII Adapter Cable - Yamaha 3-Pin |
The OBDII Adapter Cable - Yamaha 3-Pin supports all models and controllers listed below and above. |

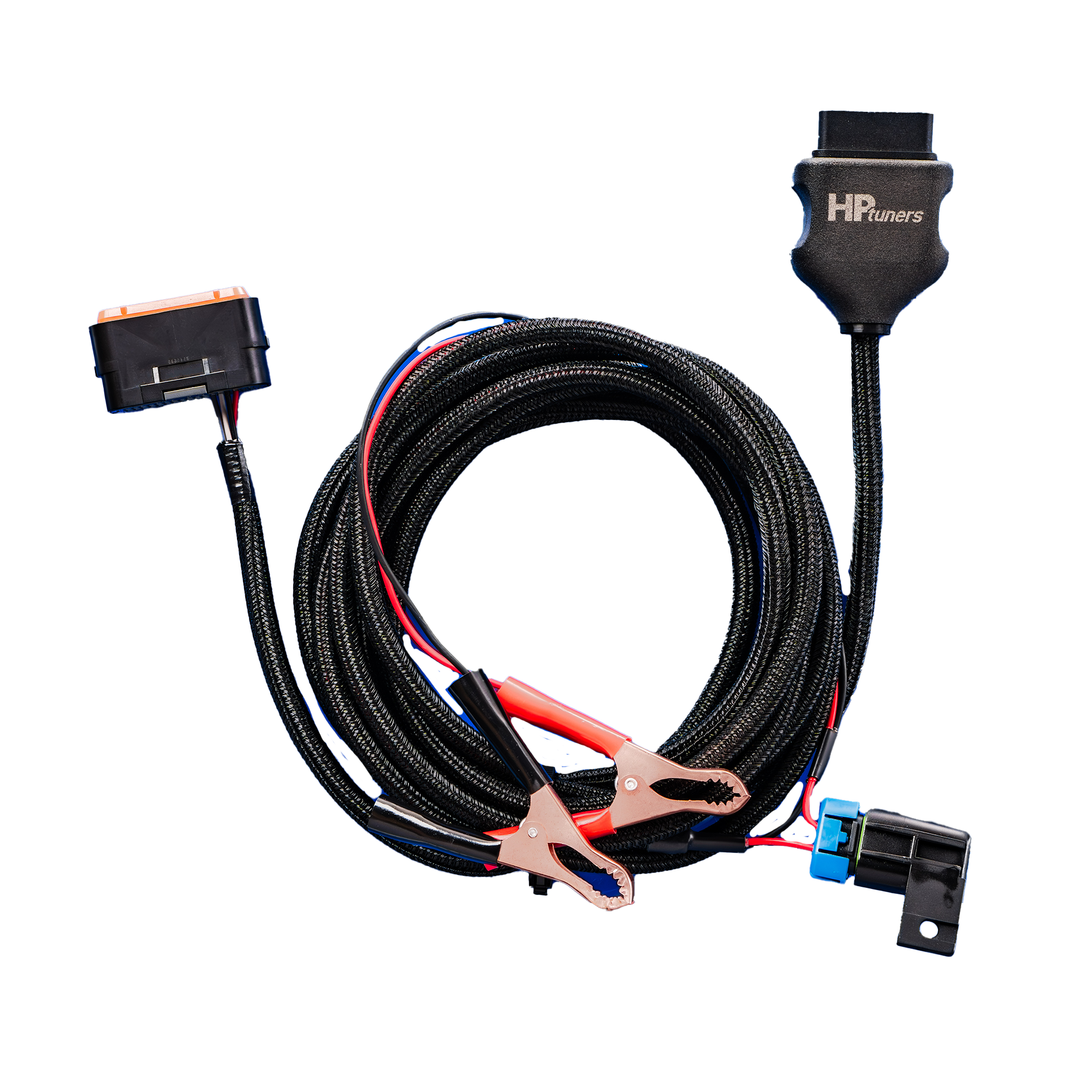

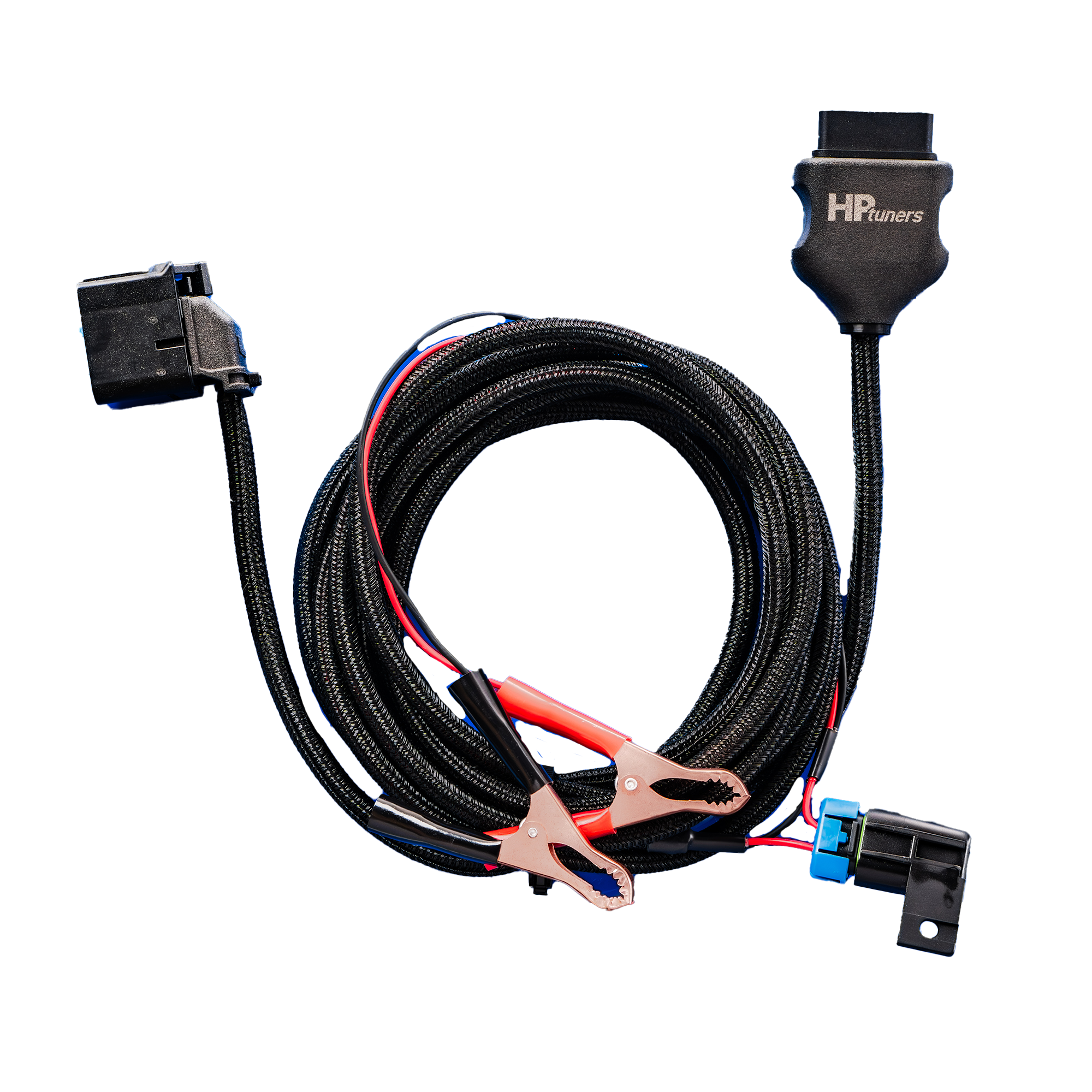

| 4 | OBDII Adapter Cable - Yamaha Outboard (44 Pin ECU, Style 2) |
The Yamaha models and controllers this adpater can connect to can be found below: MODELS: - 2005-2010 / F115 / 1.8L / 68V - 2005-2024 / F150 / 2.7L / 63P - 2005-2010 / F225 / 3.3L / 69J CONTROLLER: - Mitsubishi 512K Marine |
Note
- The OBDII Adapter Cable - Yamaha 3-Pin is used for diagnostics and generating data logs through the 3 pin diagnostic port and is compatible with all other OBDII Adapter Cables.
