Overview🔗

Layout displays represent the data presentation part of VCM Scanner.🔗

Their only purpose is to present data supplied from a log file or vehicle (via the Channels display) in an appropriate way for user analysis.

Layouts consist of several displays:🔗

  • Gauge

  • Graph

  • Chart vs. Time

Note

  • If you want to display any value on any layout display, you must provide an input on the Channels display, or create a Math parameter to supply the data.
  • Adding parameters to any layout display will not automatically add it to the Channels display.

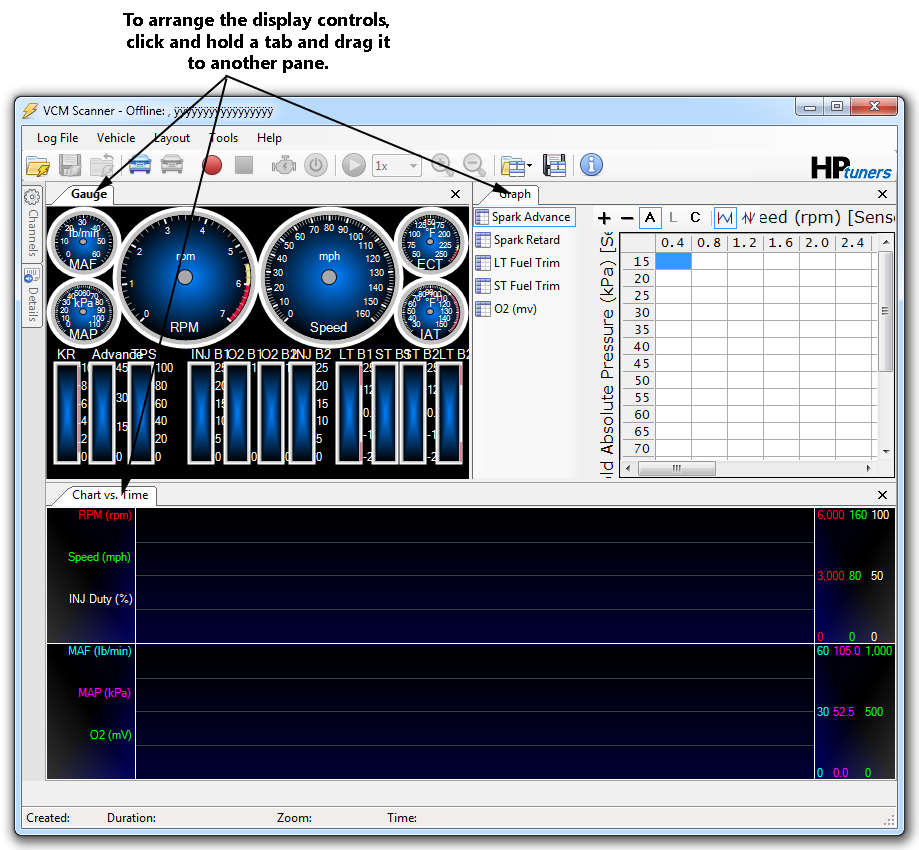

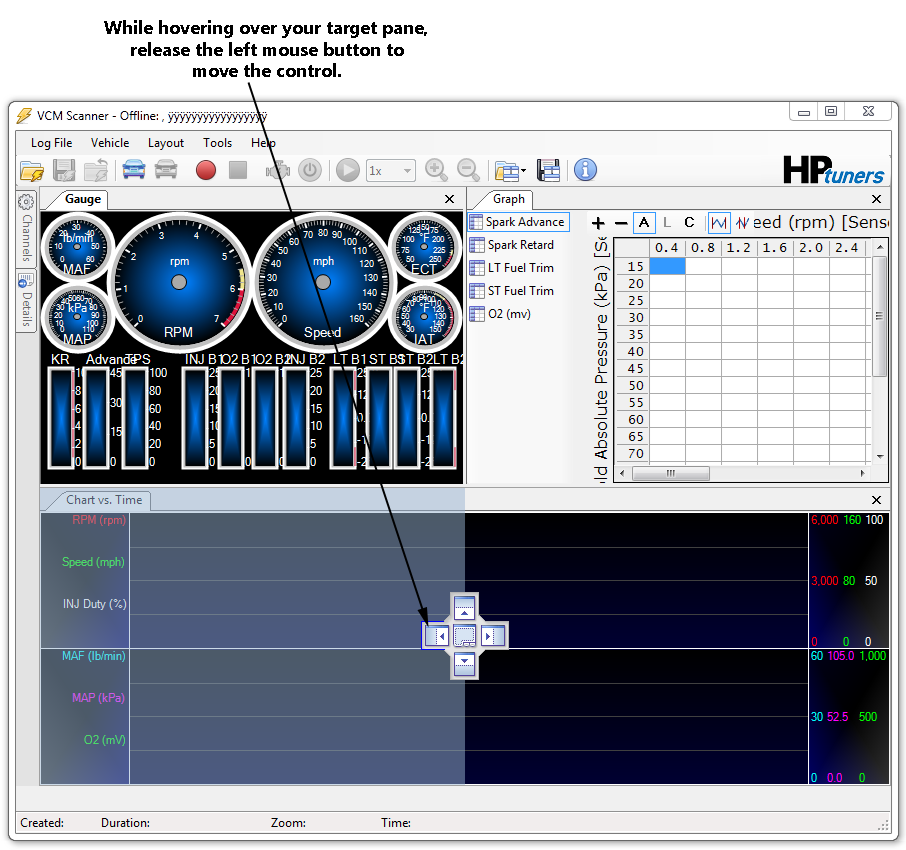

Arrange Layouts🔗

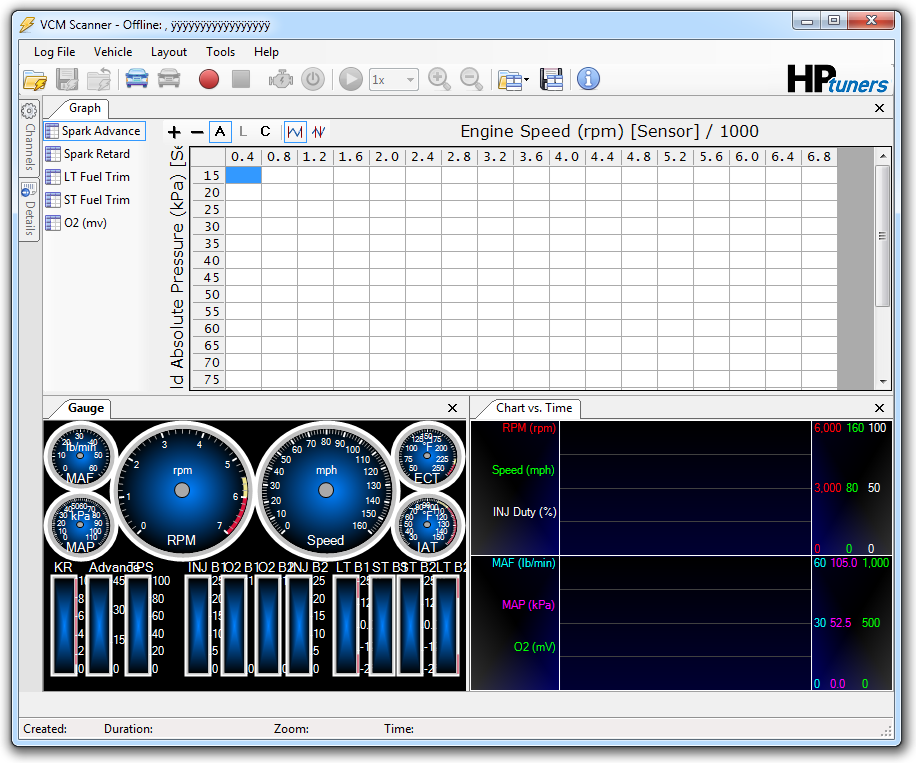

Your layout should now look like the following:

↑
