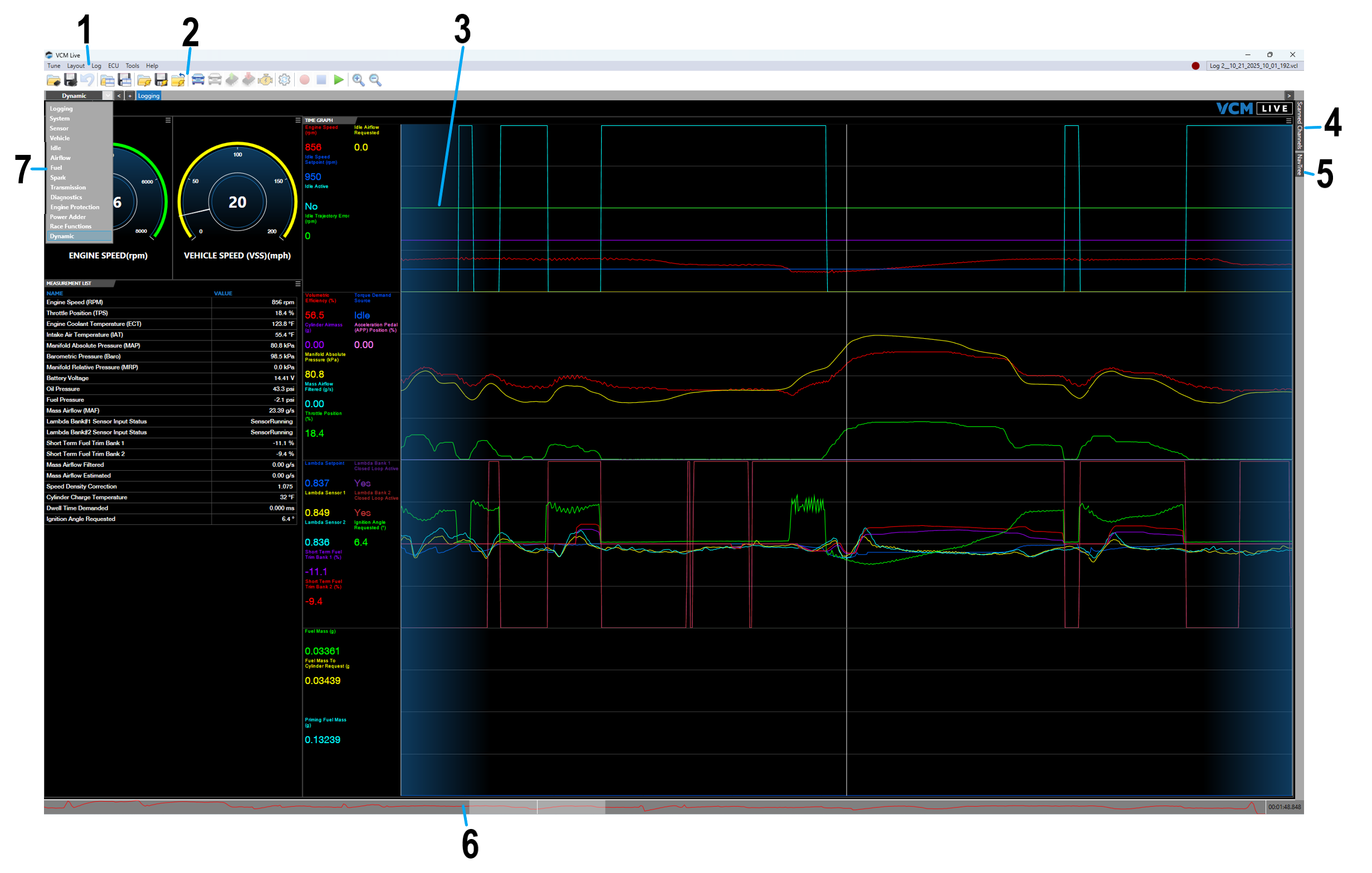

User Interface

Item	Description
1	Menu Bar
2	Toolbar
3	Data Display and Editing Subwindows - This area contains two types of subwindow: measurement and characteristic. - When recording from a connected ECU, measurement subwindows display live data gathered from the ECU. When viewing a log file, they display the logged data. - Characteristic subwindows provide interfaces for configuring the ECUs tunable parameters. This area is highly configurable. It can be set up to display the configuration and data display subwindows that are most appropriate for the task at hand.
4	Scanned Channels Tab - Select this tab to see the list of all the channels being actively monitored by VCM Live. Channels are automatically monitored when you include a gauge, graph or list that uses the corresponding measurement in your layout.
5	NavTree Tab - Select this tab to display the full list of the ECU's parameters (both measurements and characteristics). This allows users to browse or search for desired parameters.
6	Timeline - When playing back a log file, the slider on this timeline indicates the moment you are currently viewing. Slide right or left to jump forward or back in the recorded log data.
7	Grouping of Layout - This tab groups fourteen different layouts: 1. Logging - This layout facilitates the logging of predefined, basic, and essential parameters. 2. System - This layout will help with engine configuration. 3. Sensor - This layout allows users to configure all applicable sensors. 4. Vehicle - This layout allows users to configure basic vehicle controls 5. Idle - This layout allows users to configure all idle related parameters while using the Drive-By-Cable. 6. Airflow - This layout allows users to configure all airflow related parameters. 7. Fuel - This layout allows users to configure all fuel control related parameters. 8. Spark - This layout allows users to configure all spark options. 9. Transmission - This layout allows users to configure transmission related parameters. 10. Diagnostics - This layout allows users to control all related MIL and DTC related parameters. 11. Engine Protection - This layout allows users to configure all engine protection parameters. 12. Power Adder - This layout allows users to configure all boost and nitrous power adding related parameters. 13. Race Functions - This layout allows users to monitor all race function parameters in one easy convenient layout. 14. Dynamic - This layout allows users to create their own specific layout. This layout is the only layout you can customize.

Main Toolbar

VCM Live's main toolbar contains the following items:

Icon	Description
	Open an existing tune file. NOTE: If you already have a file open, this will also close the currently open file.
	Save the open tune file.
	Undo the most recent change to the tune. Click again to undo an additional change (up to 50).
	Opens a saved layout of gauges, charts, lists and/or configurable tables.
	Saves the current configuration of displayed gauges, charts, lists and/or tables to a file.
	Open an existing log file. NOTE: If you already have a file open, this will also close the currently open file.
	Save the current recording to a log file.
	Close the open log file.
	Opens a data connection to the ECU.
	Closes the data connection to the ECU.
	If there is an ECU connected to your computer, select this icon to read the ECU's current tune.
	If there is an ECU connected to your computer and you have a tune file appropriate for that vehicle open, select this icon to write the tune in the open file to the ECU.
	Open the Diagnostics and Information window, which is used to check and clear DTCs.
	If there is an ECU connected to your computer, click this icon to enable live tuning. It will begin rotating to indicate live tuning is active. Click again to disable live tuning.
	start recording.
	Stop recording / Stop playback of log file.
	Begin playback of the log file you currently have open.
	When viewing log file data or actively recording data from an ECU, click this icon to zoom in on the timeline (show a shorter period of time in more detail).
	When viewing log file data or actively recording data from an ECU, click this icon to zoom in on the timeline (show a longer period of time in less detail).
