Adding a Gauge

A gauge can be created to display value of any numerical stream of data provided by the ECU.

1. In the menu bar, select Layout > Add Control > Add Measurement. A list of gauge types appears.

2. Select the type of gauge to add: Dial Gauge, Bar Gauge or Value Gauge. A window showing the properties for the new gauge appears.



   Note

   • The configurable properties in this window vary by type of gauge.

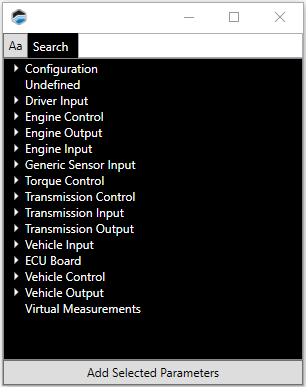

3. Click the Measurement box. A list of signals appears.



4. Select the signal whose value you want the gauge to display.

5. Click Add Selected Parameters.

6. Configure the remaining parameters for the gauge.

7. Click Create Window.
