Adding a Measurement List

A measurement list is simply a list of measurements, displayed as a two-column table, with the signal name in the left column and the current output value of the signal in the right column.

To add a measurment list,

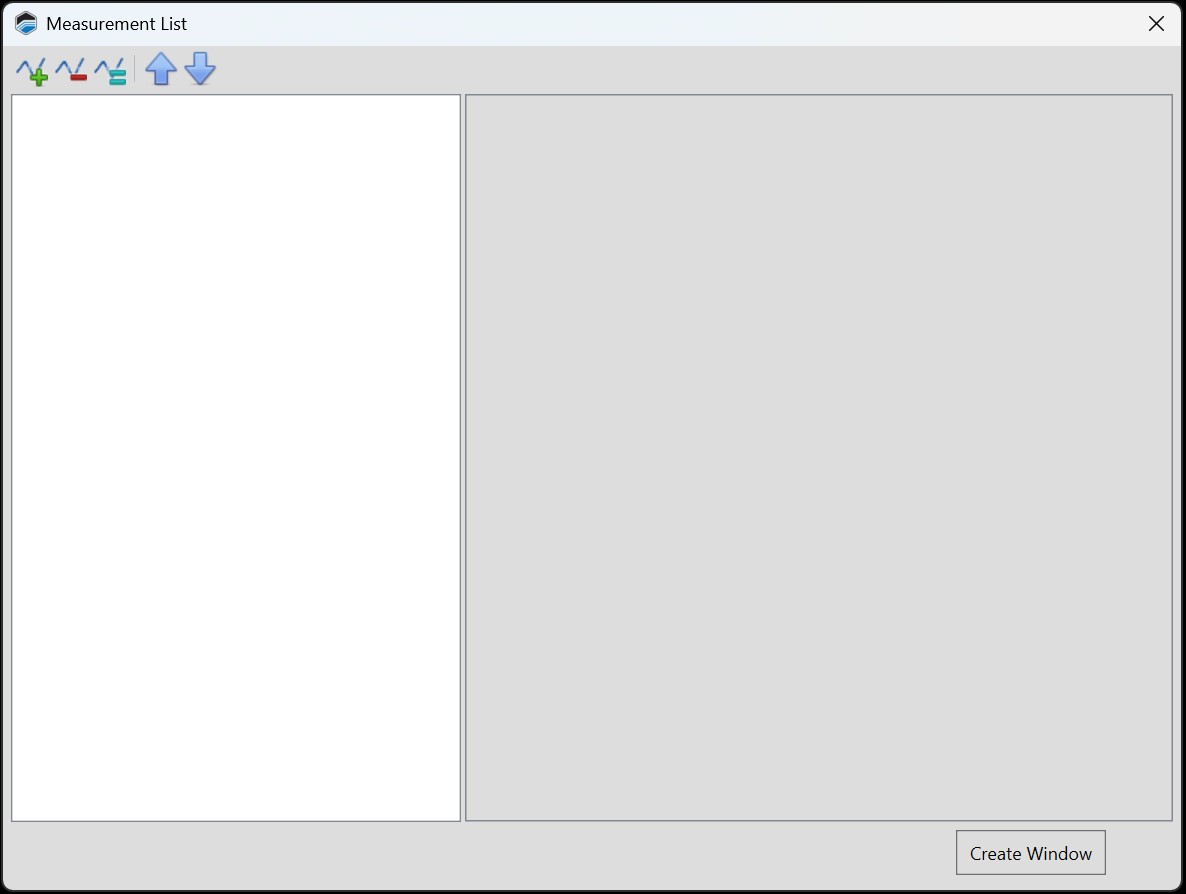

1. In the menu bar, select Layout > Add Control > Add Measurement > Add Measurement List. The below window will appear.

2. Add measurements to the list (see below for instructions).

3. When configuration is complete, Click Create Window.

Adding a Measurement To The List

1. Click

   Note

   • Step 1 is not necessary for the first measurement added. One unconfigured measurement is already present in a new list.

2. Search for the desried measurement.

3. Double-click on the measurement whose output you want to display.

4. Click Create Window.

5. Complete signal setup by configuring the signal's parameters.

Editing an Existing Measurment

To configure a signal that is already included in this layout:

1. Select the name of the signal in the column on the left.

2. Modify the signal parameters displayed on the right.

Toolbar

Parameter	Description
	Add a new measurement to the list. To complete signal setup, you must configure the signal's parameters.
	Delete the measurement selected in the left column.
	Duplicate the signal measurement selected in the column on the left.
	Move the signal selected in the left column upwards in the list.
	Move the signal selected in the left column downwards in the list.

↑
