Adding a Time Graph

A time graph displays line charts of one or more signals over time. When scanning an ECU, the charts are drawn in real time. During playback of a log file, they display a time window surrounding the current time index of the playback.

To add a time graph:

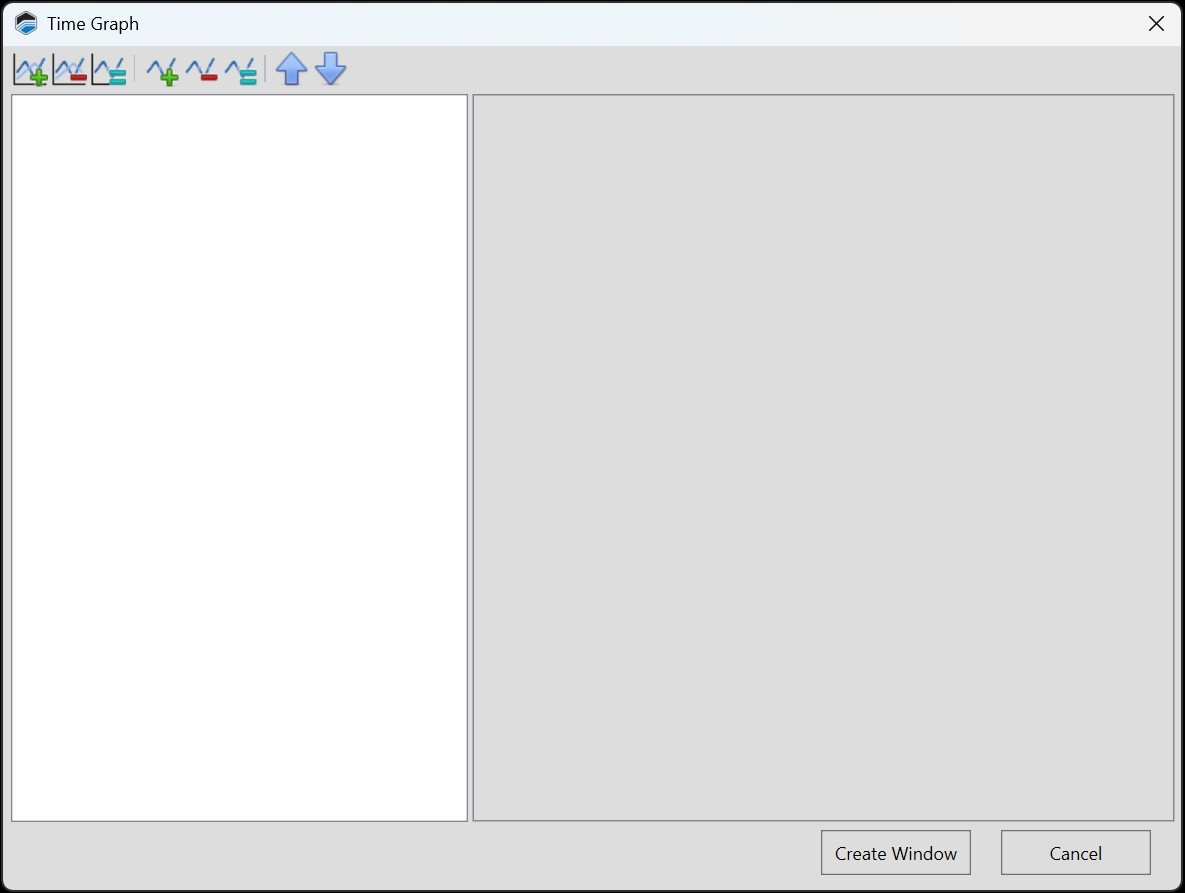

1. In the menu bar, select Layout > Add Control > Add Measurement > Add Time Graph. The below window will appear, create your desired group (s) with which ever measurements you desire, utilize the below Adding a Group & Adding a Signal (Measurement) to a Group instructions to do so.



2. When configuration is complete, Click Create Window.

Adding a Group

1. Click .

2. Add the desired signals to the group using the instructions below.

Adding a Signal (Measurement) to a Group

1. Click on the desired group you intend to add a measurement too.

2. Click .

3. Search for the measurement you wish to add.

4. Double-click on the measurement whose output you want to display.

5. Complete signal setup by configuring the signal's parameters.

Editing an Existing Signal (Series)

To configure a signal that is already included in this layout:

1. Select the name of the signal in the column on the left.

2. Modify the signal parameters displayed on the right.

Toolbar

Icon	Description
	Add a new (empty) chart group. To complete group setup, add the signals (series) that would be included in the group.
	Delete the chart group selected in the left column.
	Duplicate the group selected in the left column.
	Add a new signal (series) to the group selected in the column on the left. To complete signal setup, you must configure the signal's parameters.
	Delete the signal (measurement) selected in the left column.
	Duplicate the signal (measurement) selected in the column on the left.
	Move the signal selected in the left column upwards in the list.
	Move the signal selected in the left column downwards in the list.

↑
