Layouts🔗

Layouts specify the arrangement and content of the subwindows that appear in the main display area of VCM Live. There are two basic elements of a layout:

  • Layout Pages (Tabs) - an individual layout can contain multiple pages, which are selected using the tabs just below the toolbar.

  • Subwindows - subwindows representing sensor data or groups of tunable parameters can be added to the layout and then moved, resized, and configured in multiple ways.

Note

  • Modifying a layout involves changing these elements. Refer to the relevant sections.

Saving a Layout🔗

To save the current layout, including subwindow size and position, as well as any customization you have done to the individual subwindows:

  1. In the toolbar, select .

  2. If this is a new layout, you will be prompted to enter a name for the layout. Enter a name for file and click Save.

Loading a Saved Layout🔗

To load a layout you have saved to file:

  1. In the toolbar, select .

  2. Browse for the saved layout file and click Open.

Loading a Default Layout🔗

There are a number of pre-defined layouts listed in the menu bar. To open one of these layouts:

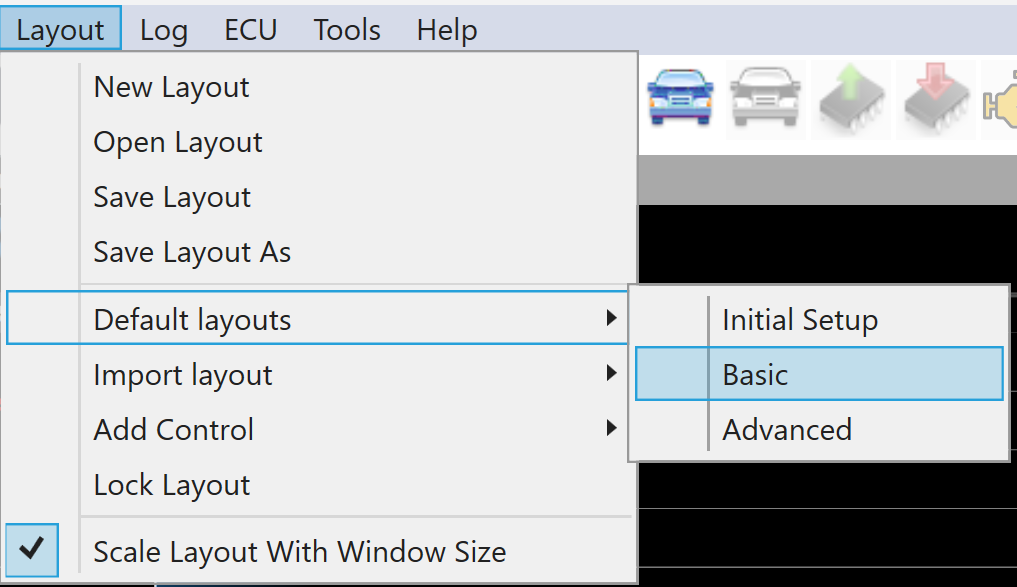

  1. In the menu bar, select Layout > Default layouts and select either Initial Setup, Basic, or Advanced.

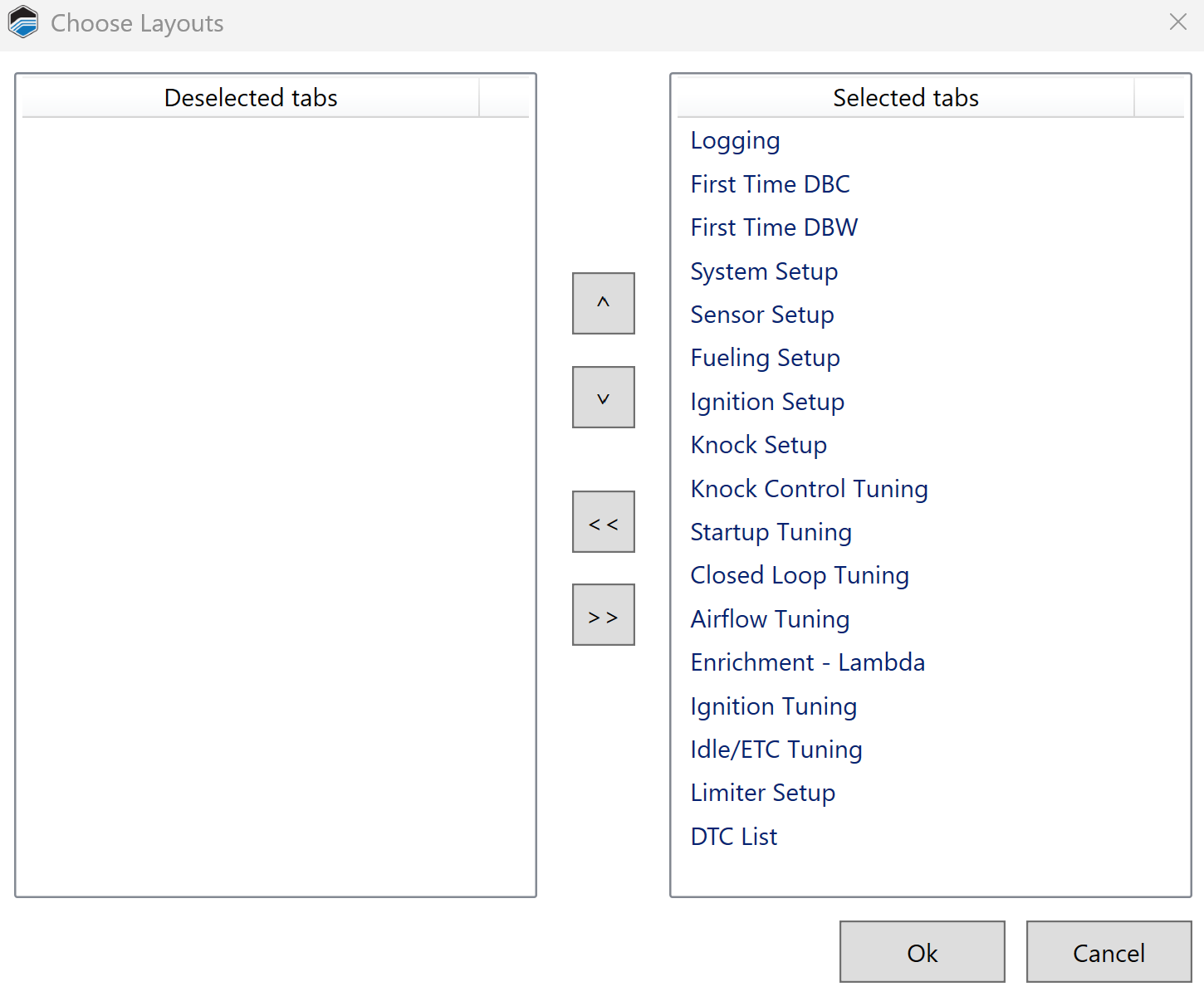

  2. A list of all the tabs included in the selected layout appears.

  3. Select the tabs from this layout to load. By default, all the tabs will be loaded. If you wish to remove a tab:

    a. Select the tab to remove in the right column.

    b. Click << to move it to the left column.

  4. If you wish to reorganize certain tabs:

    a. Select the tab to reorganize of the right column.

    b. Click either the ^ or v to reorganize your tabs.

  5. Click Ok.

↑
