CORE Boost Control🔗

Below outlines the recommended procedures to utilize both CO₂ and Timed Boost Control.

CO₂ Boost Control Calibration🔗

VCM Live along with CORE offer four CO₂ boost control modes. All modes can be configured with or without dome pressure inputs. CORE efficiently manages the fill and exhaust wastegate valves to achieve effective boost control. Upon deactivation, CORE automatically drains boost pressure, ensuring the system is ready for the next operation. The four CO₂ boost control modes are as follows:

  1. Open loop CO₂ boost control

  2. Close loop CO₂ boost control

  3. Timed open loop CO₂ boost control

  4. Timed close loop CO₂ boost control

Note

CORE provides dual over-boost protection including the following:

- Over boost soft limiter: Ensure to adjust parameters such as spark, throttle position (Drive-By-Wire & Dual throttle setups), and wastegate duty cycle to prevent excessive boost.

- Over boost hard limiter: Acts as the final safeguard to ensure boost pressure remains within safe limits, preventing mechanical damage.

  1. Download the latest VCM Live (Beta) software.

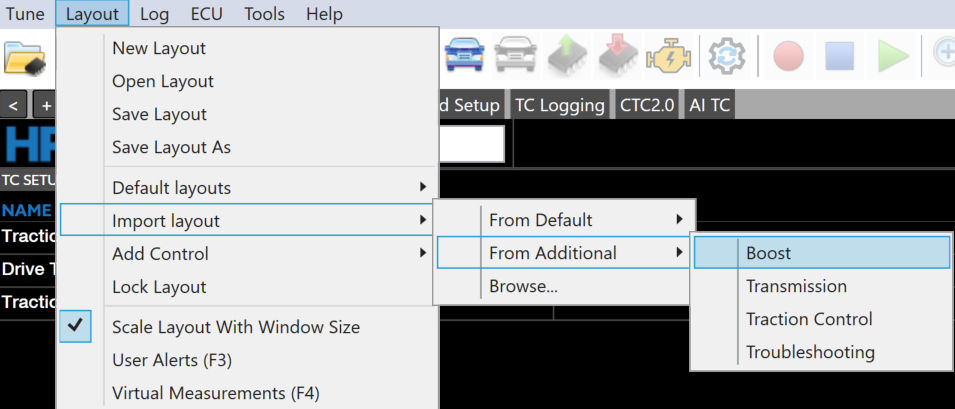

  2. In the menu bar Click Layout > Import layout > From Additional > Boost.

  3. Select the correct layout needed to adjust your boost control options and select Ok.

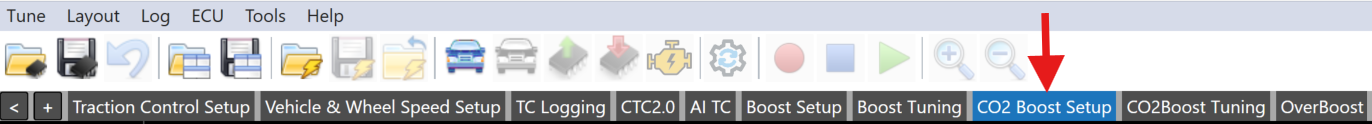

  4. Select the CO₂ Boost Setup layout tab.

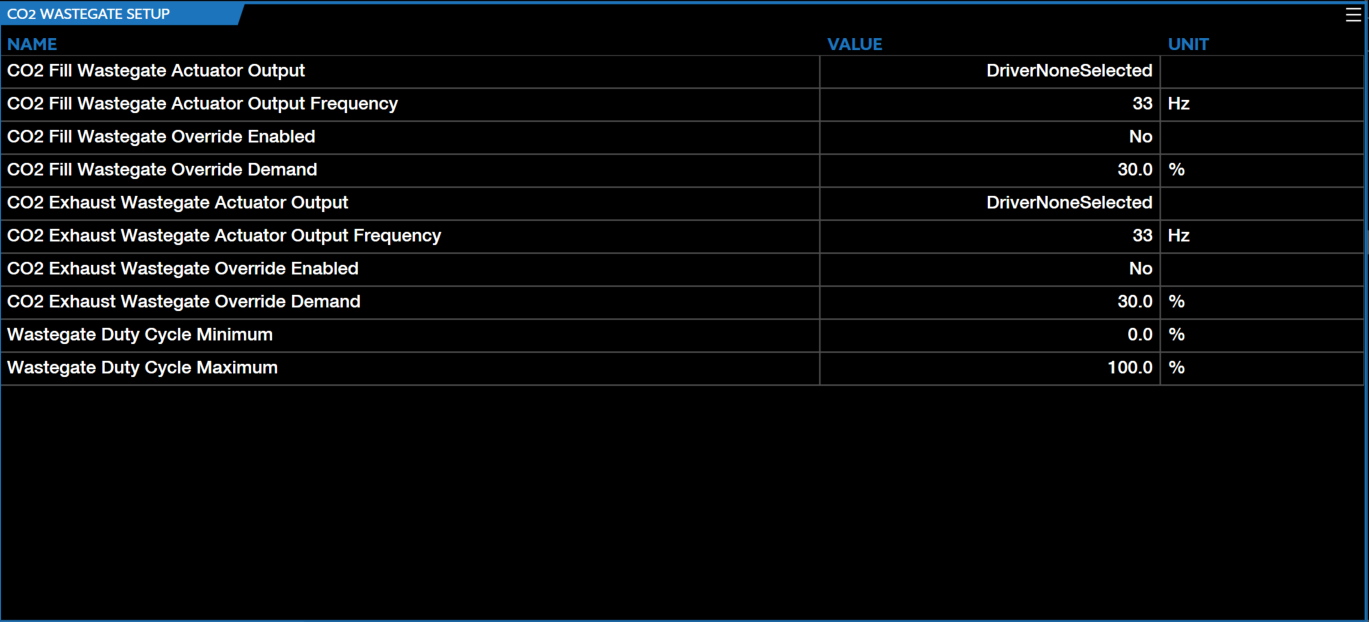

  5. Adjust the CO₂ WASTEGATE SETUP parameters accordingly and ensure all channels are wired and the corresponding channels are set accordingly.

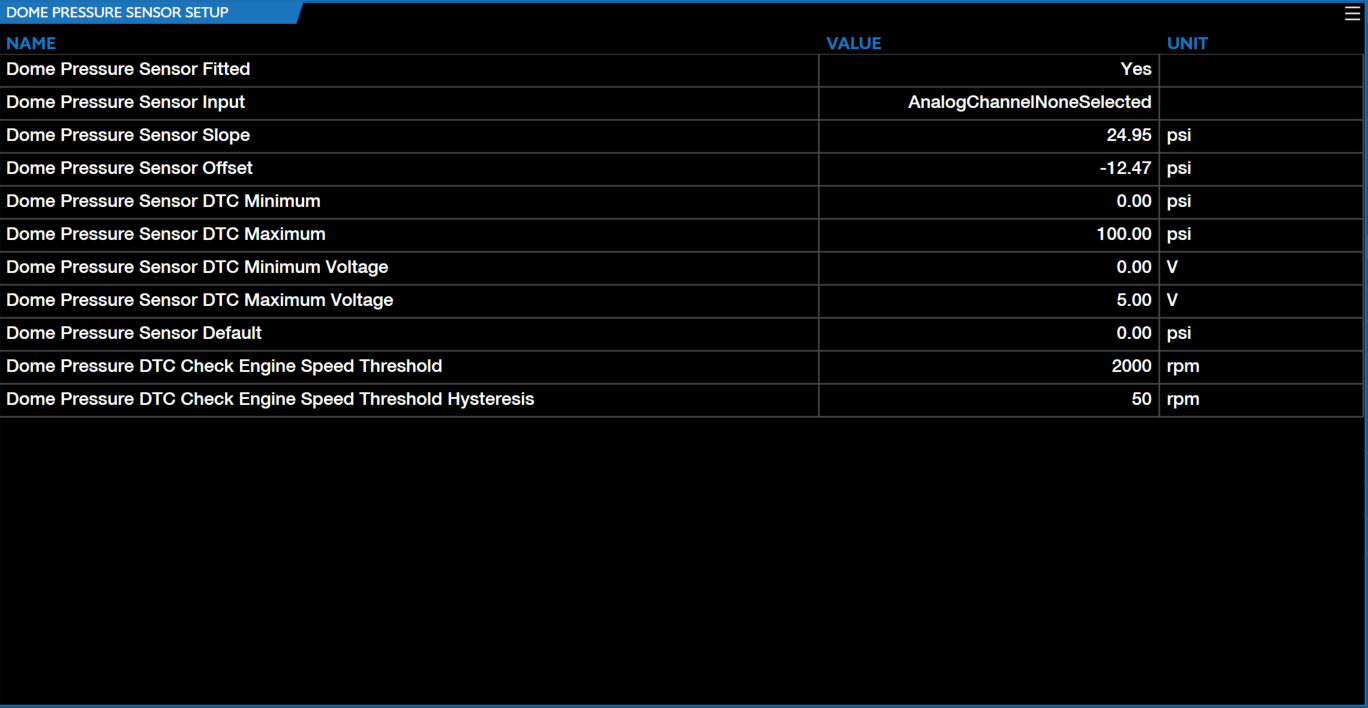

  6. Adjust the DOME PRESSURE SENSOR SETUP parameters accordingly and ensure all channels are wired and the corresponding channels are set accordingly.

  7. Adjust the OVERBOOST SOFT LIMITER SETUP parameters accordingly.

  8. Adjust the OVERBOOST HARD LIMITER THRESHOLD parameters accordingly.

  9. Adjust the OVERBOOST HARD LIMITER CUT SETUP parameters accordingly.

  10. Ensure the MAP Selection Arming Switch Sensor Fitted is set to Yes and the correct channel input is selected.

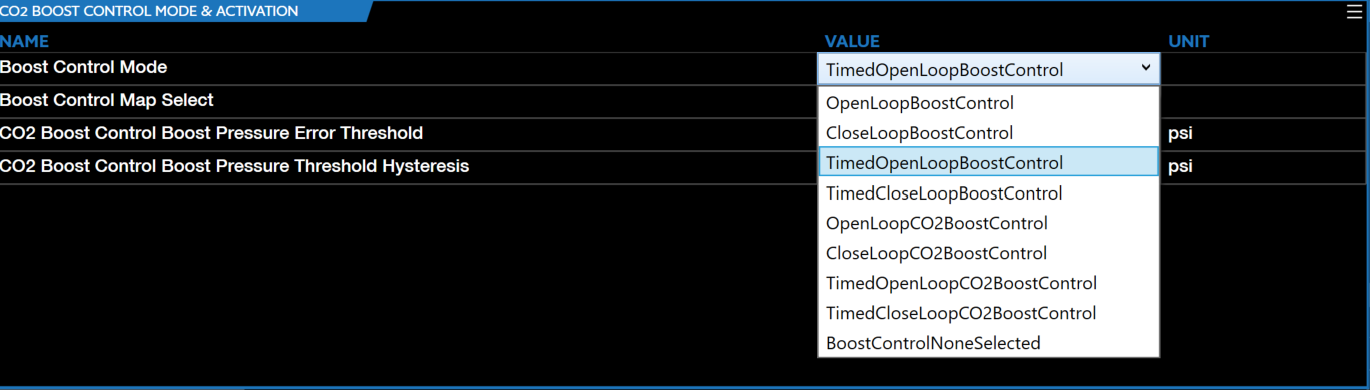

  11. Select the corresponding CO₂ Boost Control Mode.

  12. Set the Boost Control Manifold Relative Pressure Threshold to the desired value you want boost control to enable.

    Note

    Values above the CO₂ Boost Control Boost Pressure Error Threshold will reset the integral of closed loop CO₂ boost control.

  13. Set the Boost Control Manifold Relative Pressure Threshold Hysteresis to the desired value you want boost control to disengage.

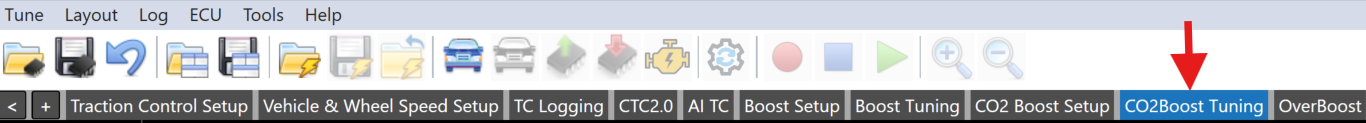

  14. Select the CO₂ Boost Tuning tab.

    Note

    This tab is where CO₂ boost can be montiored and live tuned.

  15. The Boost Pressure Setpoint (PSI) table is a function of engine speed and throttle position, utilize this table to tune both parameters accordingly.

    Note

    Users can utilize throttle position cuts, ONLY for Drive-By-Wire (electronic throttle body) setups.

  16. CO₂ boost control is now ready to be utilized.

Timed Boost Control Calibration🔗

Timed Boost Control operates in conjunction with the standard boost control activation criteria, incorporating an additional timed activation mechanism. This mechanism uses either the timed boost arming switch or the clutch pedal (depending on the transmission type) to enable boost control. VCM Live along with CORE offer four Timed Boost Control Modes, those modes are as follows:

  1. Timed open loop boost control
  2. Timed close loop boost control
  3. Timed open loop CO₂ boost control
  4. Timed close loop CO₂ boost control

Note

CORE applies dual over-boost protection to all Timed Boost Control modes.

  1. Download the latest VCM Live (Beta) software.

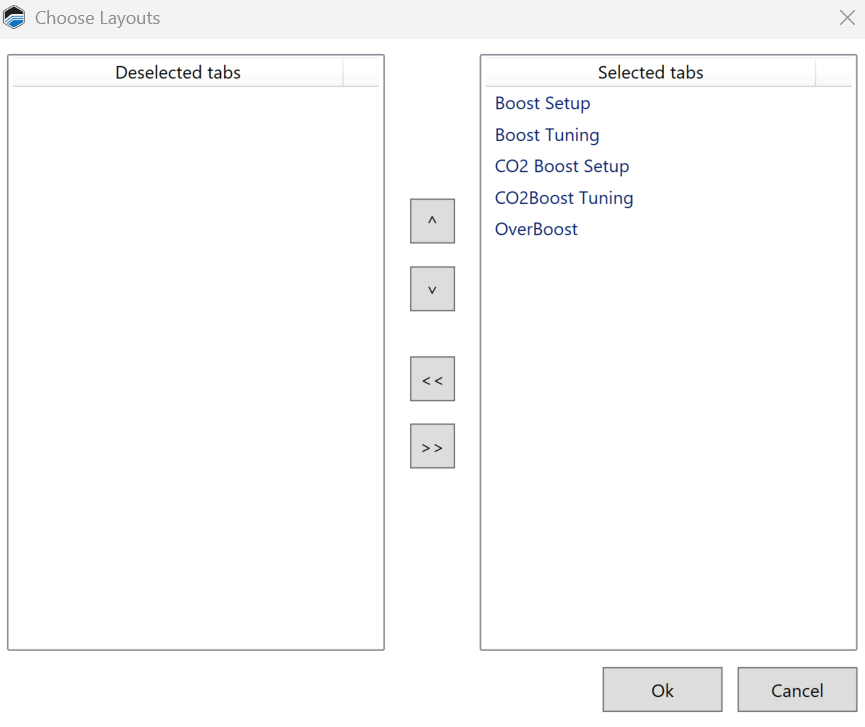

  2. In the menu bar Click Layout > Import layout > From Additional > Boost.

  3. Select the correct layout needed to adjust your boost control options and select Ok.

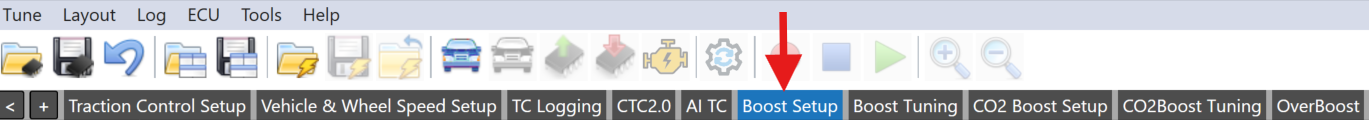

  4. Select the Boost Setup layout tab.

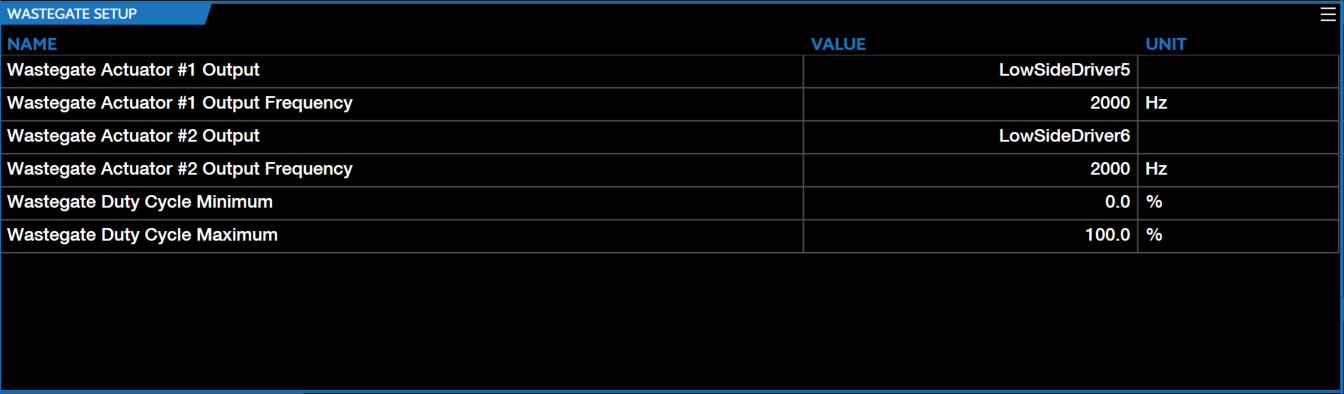

  5. Adjust the WASTEGATE SETUP parameters accordingly and ensure all channels are wired and the corresponding channels are set accordingly.

    ![]

  6. Adjust the DOME PRESSURE SENSOR SETUP parameters accordingly and ensure all channels are wired and the corresponding channels are set accordingly (if applicable).

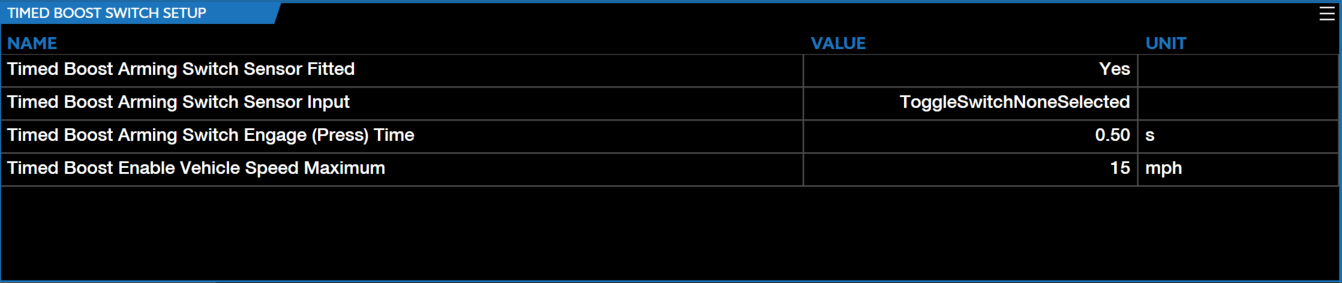

  7. Adjust the TIMED BOOST SWITCH SETUP parameters accordingly and ensure all channels are wired and the corresponding channels are set accordingly.

    Note

    A Timed Boost Switch is REQURIED in order to utilize the above parameters.

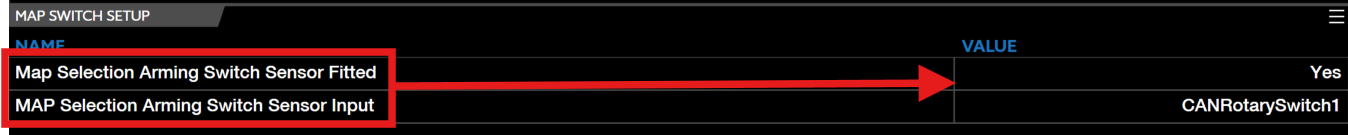

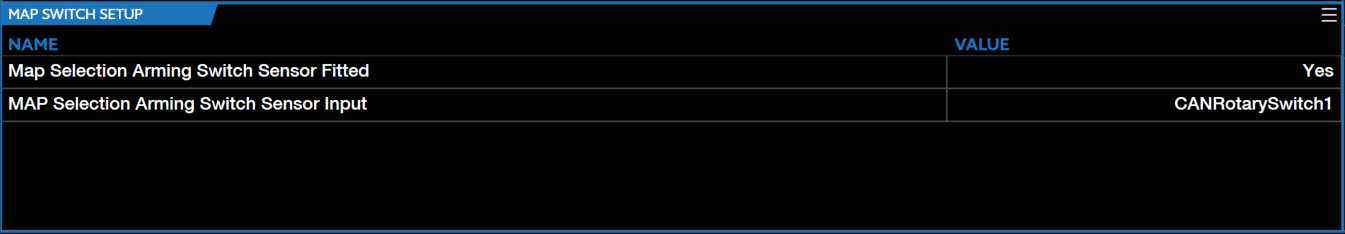

  8. Adjust the MAP SWITCH SETUP parameters accordingly.

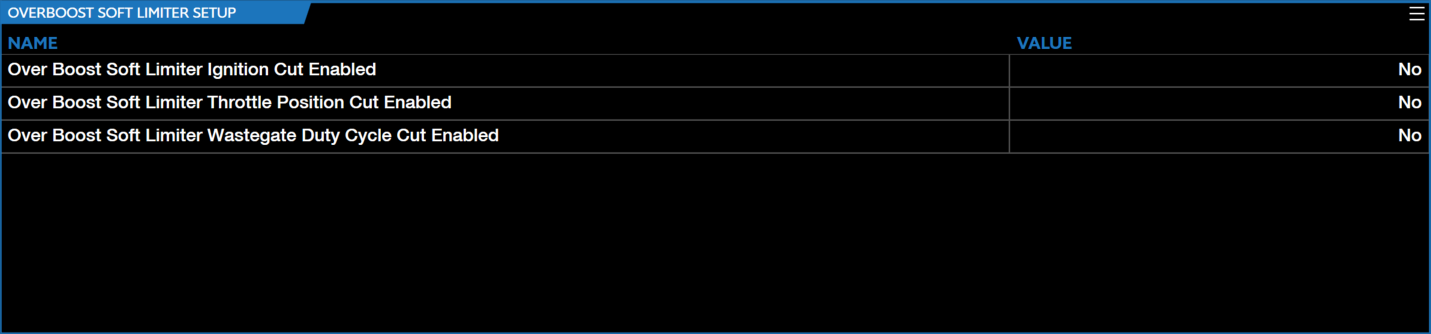

  9. Adjust the OVERBOOST SOFT LIMITER SETUP parameters accordingly.

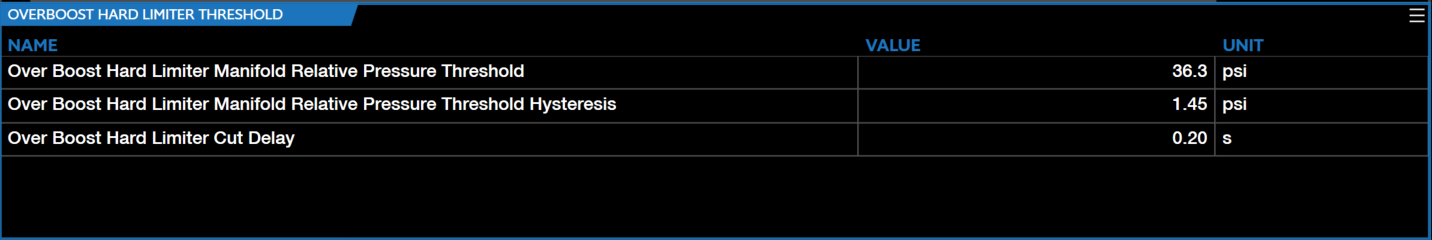

  10. Adjust the OVERBOOST HARD LIMITER THRESHOLD parameters accordingly.

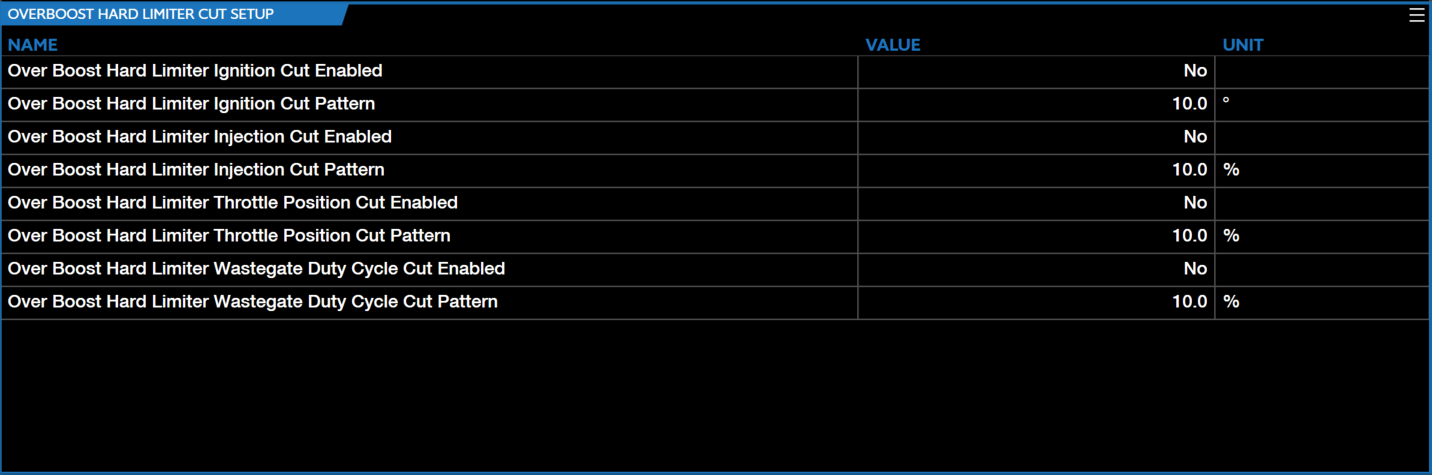

  11. Adjust the OVERBOOST HARD LIMITER CUT SETUP parameters accordingly.

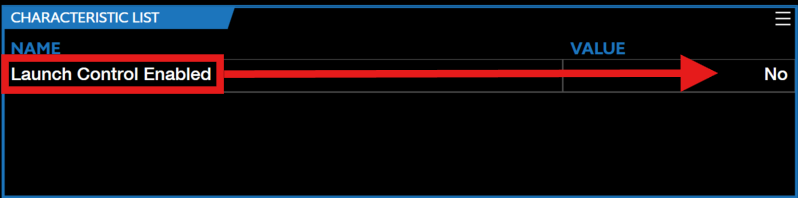

  12. Ensure Launch Control Enabled is set to No.

  13. Select the corresponding Timed Boost Control Mode.

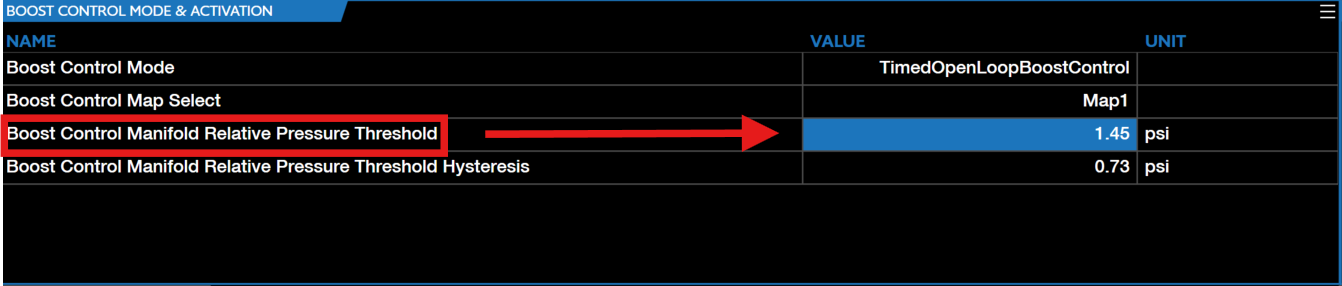

  14. Set the Boost Control Manifold Relative Pressure Threshold to the desired value you want boost control to enable.

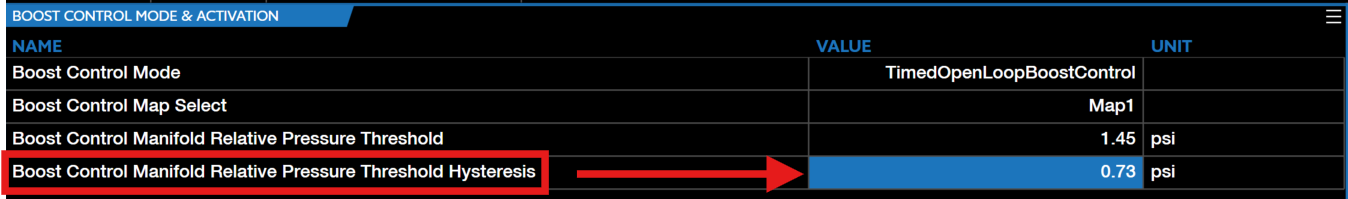

  15. Set the Boost Control Manifold Relative Pressure Threshold Hysteresis to the desired value you want boost control to disengage.

  16. Select the Boost Tuning tab in the menu bar.

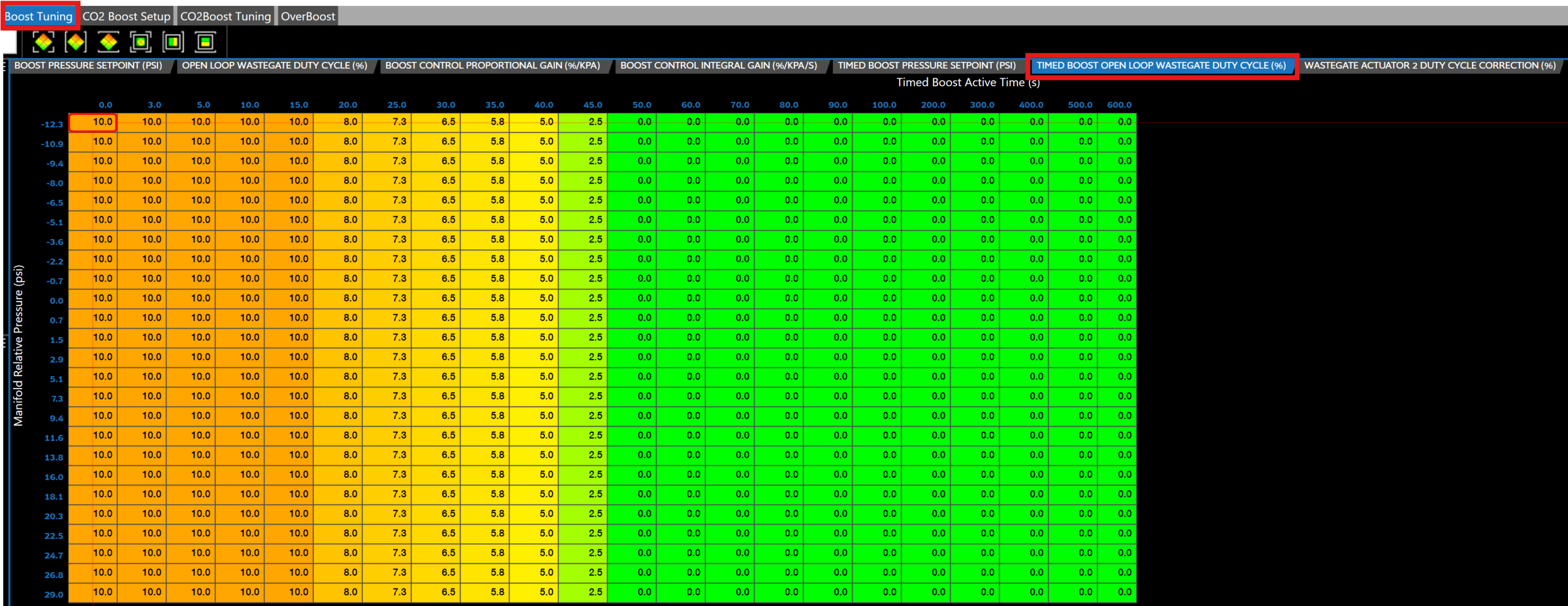

  17. Adjust the baseline threshold by setting the TIMED BOOST OPEN LOOP WASTEGATE DUTY CYCLE (%) parameter accordingly.

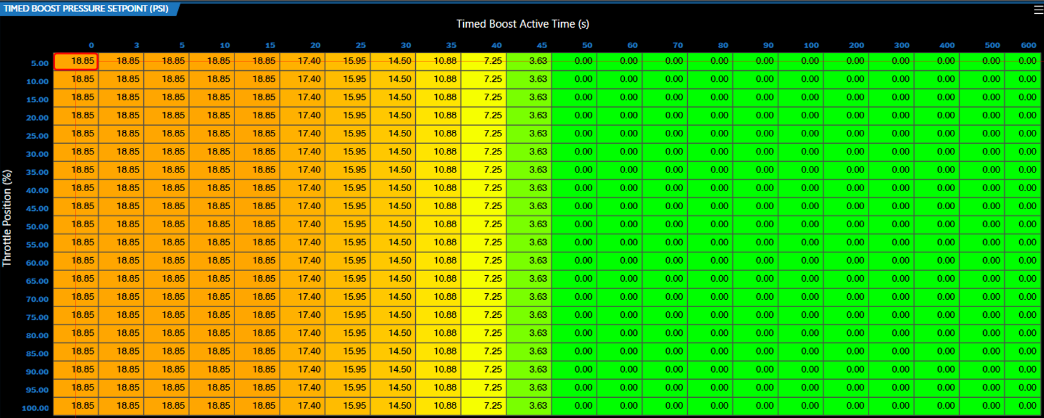

  18. Set the TIMED BOOST PRESSURE SETPOINT (PSI) accordingly.

    Note

    These timed boost modes are functions of throttle position and timed boost active time.

    Note

    The above table/system will maintain the boost demand specified at the last point in the able. It is recommended to set a safe boost value for the last point to ensure reliability and avoid potential issues.

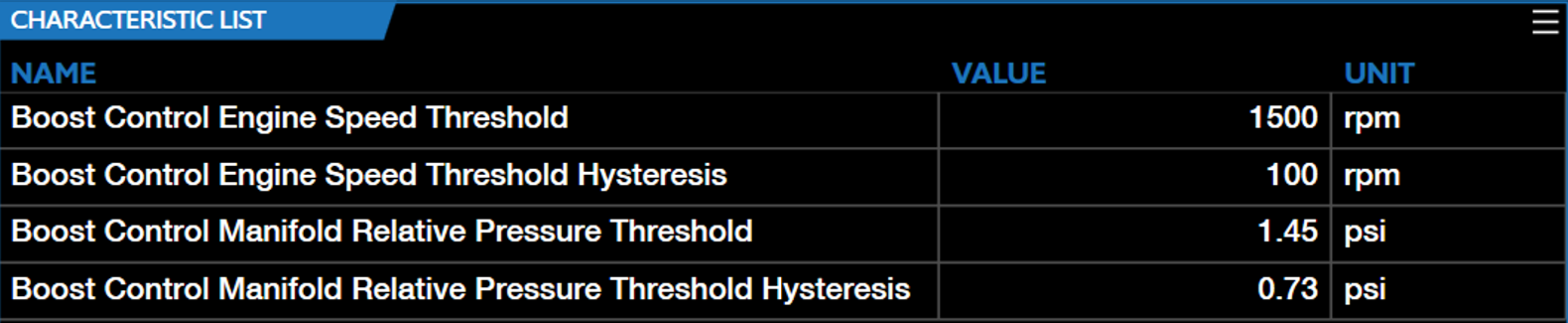

  19. Adjust the below parameters accordingly.

    Note

    Both the engine RPM and manifold relative pressure must exceed their respective threshold values for boost control activation.

    Note

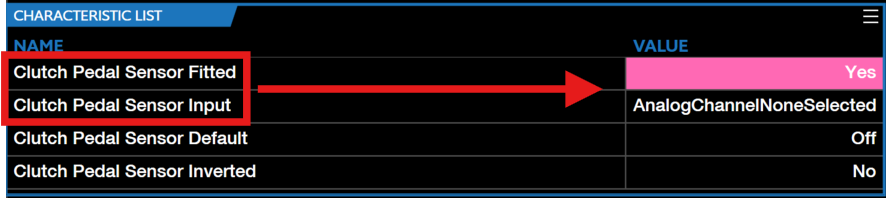

    If operating with a manual clutch, ensure the Clutch Pedal Sensor Fitted parameter is set to Yes and the corresponding channel is fitted correctly.

  20. To live tune timed boost control adjust BOOST CONTROL PROPORTIONAL GAIN (%/KPA) & BOOST CONTROL INTEGRAL GAIN (%/KPA/S) accordingly.

  21. Timed boost control is ready to be utilized.
